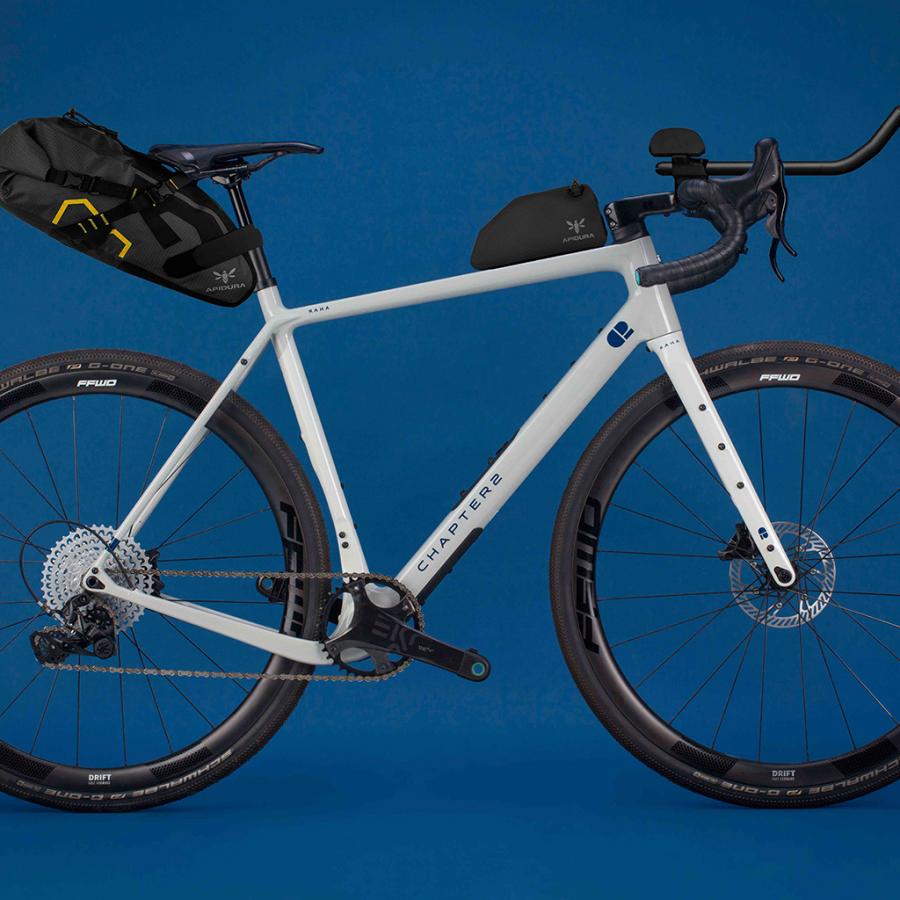

Chapter2 KAHA Gravel Race Disc Brake Frameset-Grey+Blue (Kapua)

214,900.00

Description

KAHA – Meaning “Power & Strength” in Maori – Performance gravel racing frame | fully integrated cabling | up to 47mm tire clearance





About the Frame:

The KAHA features fully integrated cabling via the MANA-GRVL Handlebar, Internal downtube storage compartment as well as a race ready and well balanced performance geometry.

The design brief for the KAHA was relatively simple, scratched onto the back of an envelope were the words “Controlled Speed”.

However, the journey to arrive at the perfect solution was anything but simple. We don’t want to skimp on practical details like storage, pannier/ fender racks, or ability to fit TT-Clip bars. Iteration after iteration, review after review, every little detail and decision was scrutinized to the nth degree.

Needless to say, all that effort was worth it, as the final deliverable achieves all the performance metrics we had envisioned for a High-Performance Gravel Racer.

Model Benefits:

  • Performance Geometry: Improved Agility at Speed

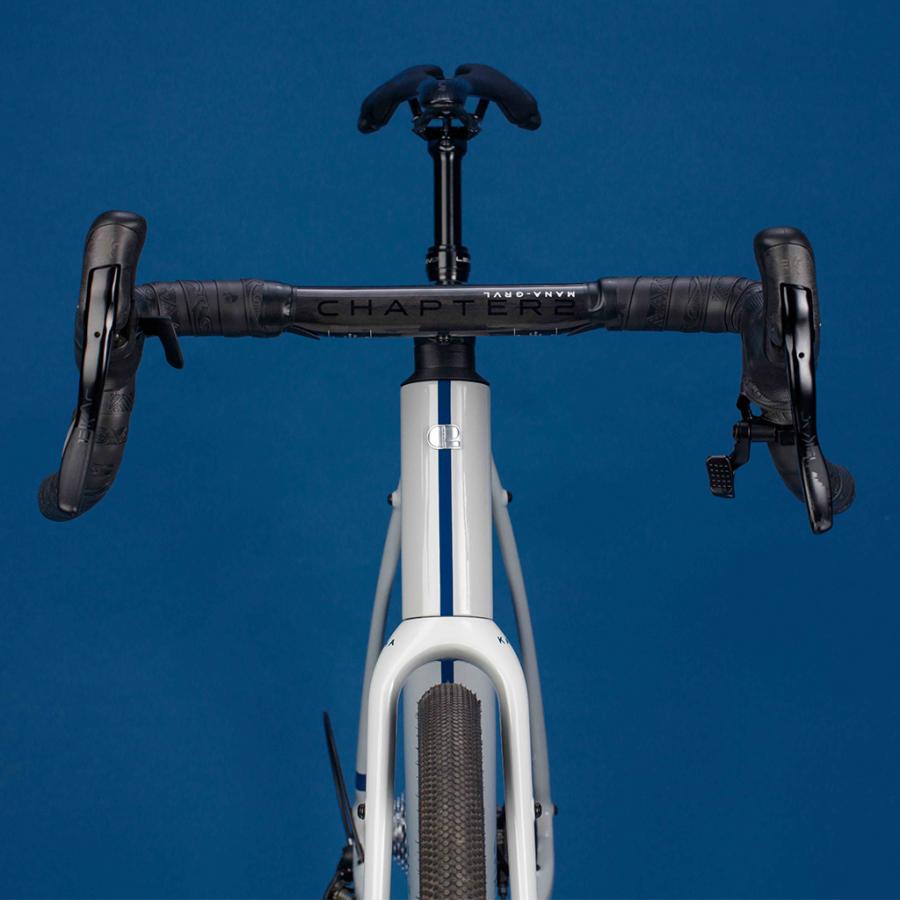

  • Integrated MANA-GRVL: Improved Aerodynamics and Clean Aesthetics
  • MANA-GRVL (Clip-on): Ability to use Clip-on Bars
  • 50mm Front & 47mm Rear Tire Clearance: Increased Tire Options

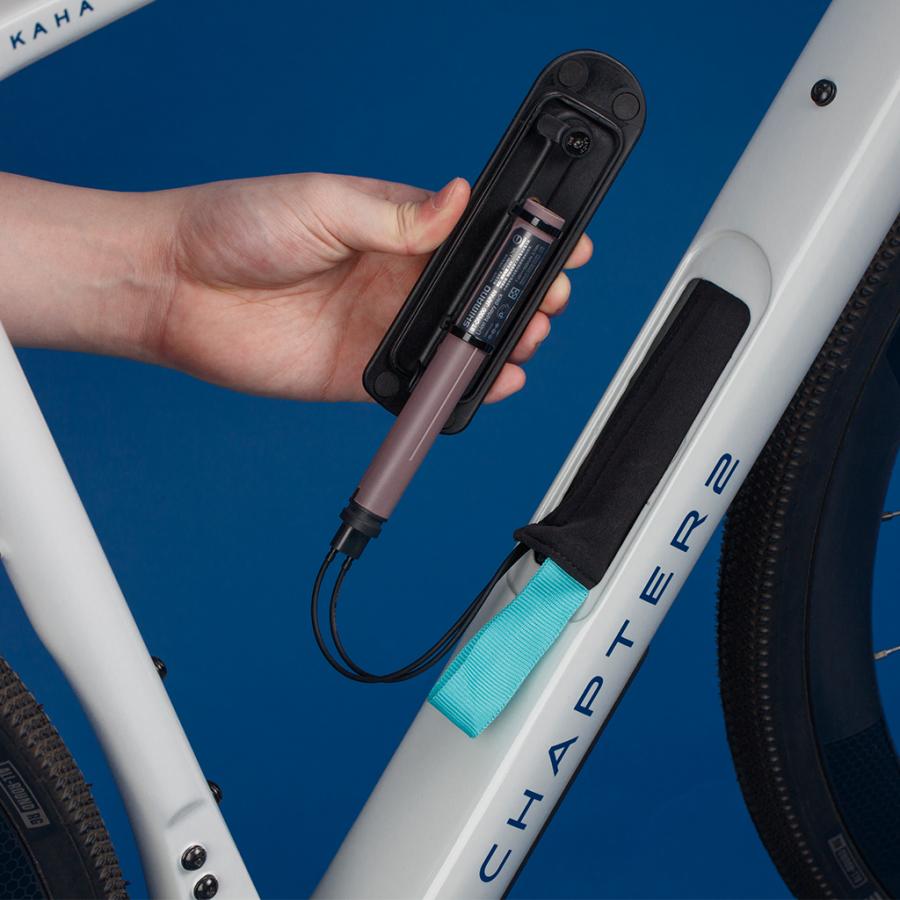

  • Integrated Storage: Hidden Storage for CO2 Cartridges/Tubes etc

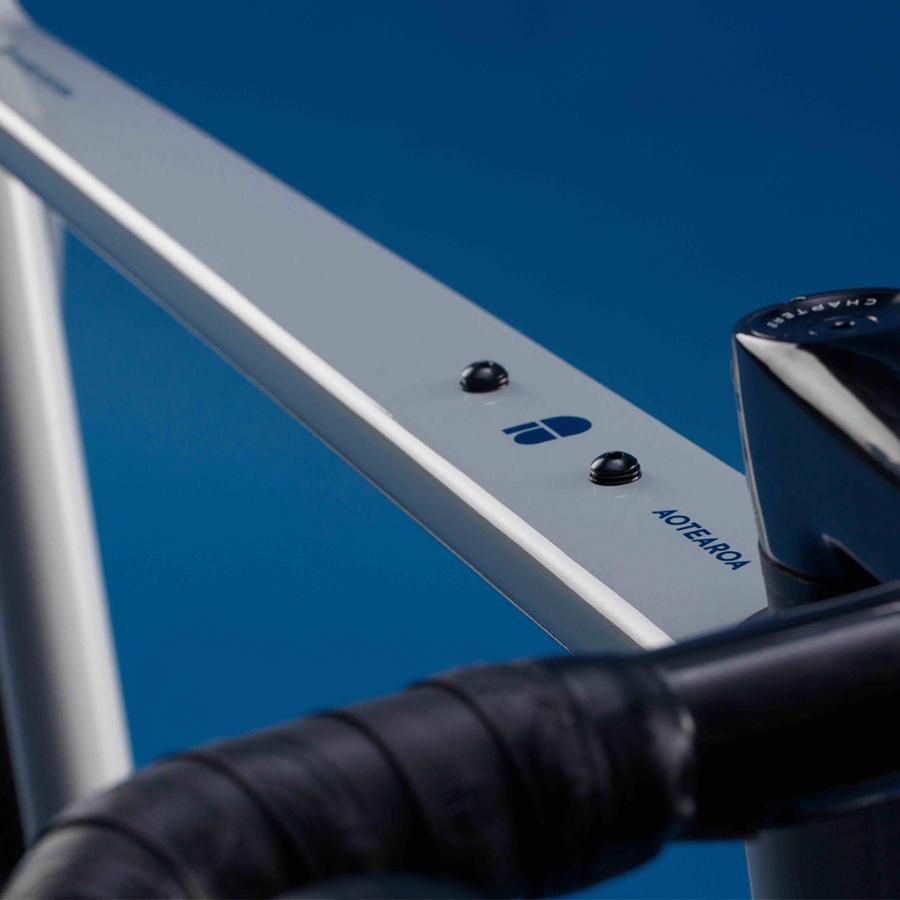

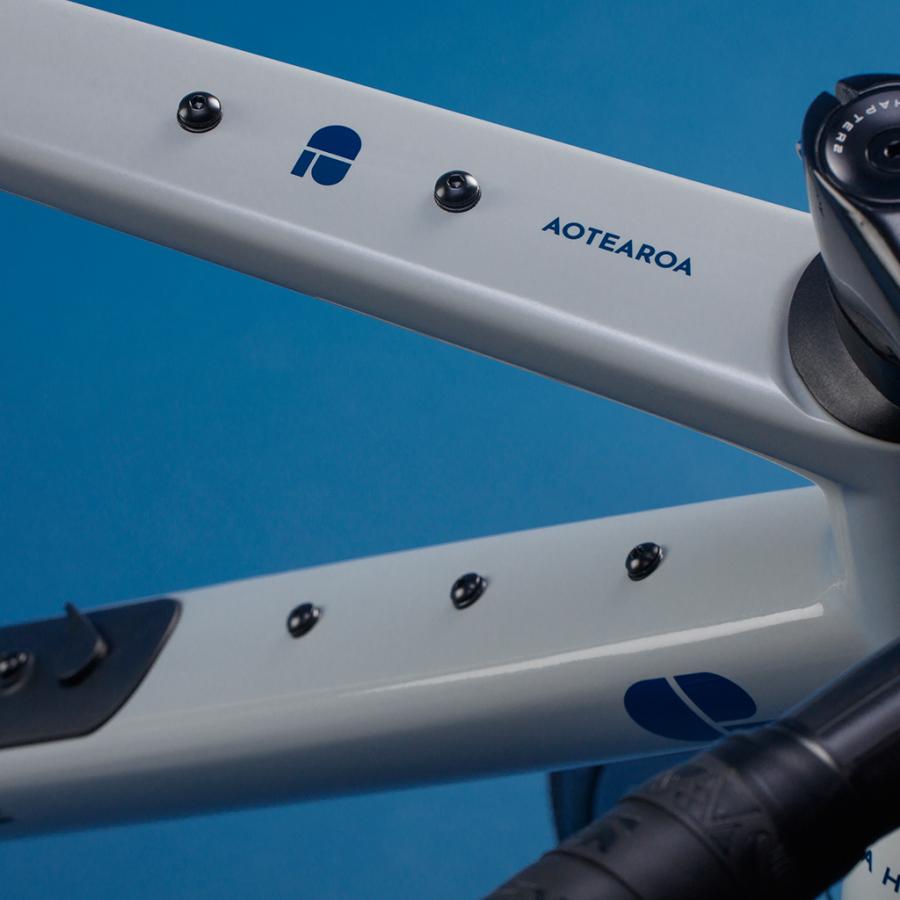

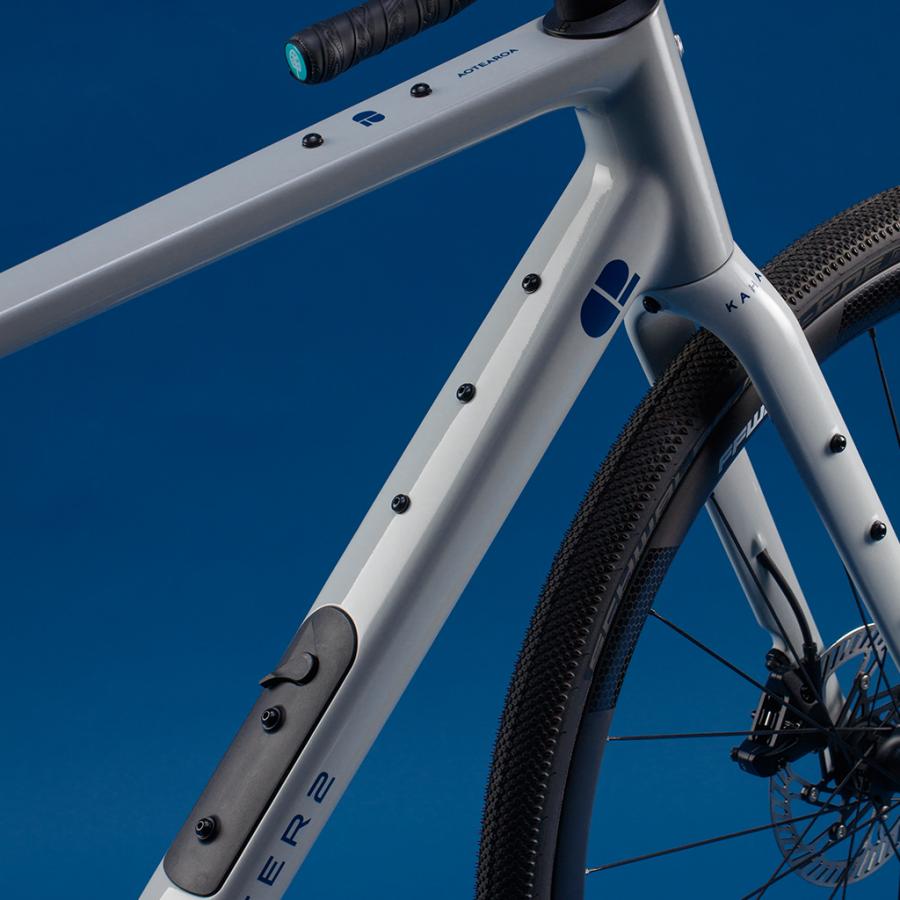

  • Ample Mounting Points: Flexible Hydration, Luggage & Rack Options
  • T47 BB: Noise-free and Easy to Service
  • Frameset Only: Bespoke & Personal









What you Get:

  • Frame
  • Fork
  • Headset
  • Thru Axles
  • Quick-Fit Spacers
  • MANA-GRVL Handlebar (to be ordered separately)



Sizing Information

Note: All dimensions are in mm unless otherwise mentioned

Ref Size XS S M L XL
A Top Tube Length 535 553 569 586 603
B Head Tube Length 101 129 148 175 202
C Seat Tube Angle 73 73 73 73 73
D Head Tube Angle 71 72 72 72 72
E Seat Tube Length 436 462 491 512 541
F BB Drop 70 70 70 70 70
G Rear Centre 415 415 415 415 415
H Wheelbase 1009 1027 1024 1041 1059
I Front Centre 604 622 619 636 653
J Fork Offset 65 65 55 55 55
Stack 519 545 571 596 622
Reach 377 386 395 404 413
Stem N/A N/A N/A N/A N/A
Standover Height 751 776 804 826 853
Rider Height (cm) 160-170 165-175 170-180 175-185 >180
Max / Tire Size F/R 50/47 50/47 50/47 50/47 50/47
Rear Caliper Mount 25 25 25 25 25

Frame Specs:

  • Carbon: 100% Made in Japan by Toray
  • Frame 5 Sizes: XS, S, M, L & XL
  • Fork Rakes (2): XS, S (65mm offset) and M, L, XL (55mm offset)
  • Frame Weight: 1,099g Size M +/-3%
  • Fork Weight: 409g +/-3%
  • Handlebar (MANA-GRVL) Weight: 330g (100x491mm) +/-3%
  • Headset: 1.5” C2 Integrated System
  • BB: Internal T47 (85.5)
  • Mechanical & Electronic Shifting: Versatile Groupset Options
  • Electronic Shifting: SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
  • Battery Type: Di2 SM-BTR-2 or BT-DN300 and EPS V3 Battery Compatible
  • Tire Clearance: 47mm (700C) & 47mm (650B)
  • Brake Type: Disc Only (140 & 160 Rotors)
  • Disc Thru-Axle Spec: Flat Mount FR 12x100mm, RR 12x142mm, E-Thru M12x1.5mm
  • Safety Standard: EN ISO 4210:2014



Torque Specs:

  • Seatclamp: 6Nm
  • Stem (Steerer): 6Nm
  • Stem (Handlebar): 6Nm
  • Front Derailleur Hanger: 3Nm
  • Rear Derailleur Hanger: 2Nm
  • BB Cable Guide Cover: 1Nm
  • Thru-Axle: 10Nm
  • Water Bottle Cage Bolts: 3Nm



Chapter2 Lifetime Warranty Policy:

All CHAPTER2 framesets (frame, forks, seatpost, and other parts provided with frame at time of purchase) and MANA Bar and associated parts are covered under our global lifetime warranty program. Your warranty period begins from the time of purchase.

CHAPTER2 warrants that your frame, fork, and/or seatpost and other parts supplied with the frame are free of any manufacturer’s defects and are only applicable to the original purchaser and may not be assigned.

This warranty only applies to CHAPTER2 products purchased from our website or from an authorised dealer or online store. This warranty commences from the date of purchase, is offered only to the original retail purchaser, and is not transferable.

Exceptions:

Consumable parts/accessories such as hangers, cable stops, seatclamps, saddle clamps, etc. are not covered under this warranty.

The paint and decals on your CHAPTER2 frame, fork, and/or seatpost and other CHAPTER2 branded parts/accessories are only covered for a period of 2 years from the time of purchase.

The warranty excludes damage whilst the frame, fork, and/or seatpost are being used on a stationary trainer.

Damage caused by abuse, misuse, improper assembly, rental, improper or insufficient maintenance, accident, impact, corrosion, use of aggressive cleaners, use with non-compatible components, improper repairs, and wear and tear is not covered under this warranty.

For complete details of Chapter2 Lifetime Warranty Policy, Click Here

Additional information

size

L, M, S, XL, XS
