Description
About the Frame:Air resistance is the single most critical factor that separates a fast bike from a bike that cuts through the air like a bird. KOKO means “to soar, fly” in Maori and as the name suggests, our Top Tier Aero Road model will have you smiling from ear to ear from the sheer thrill of unadulterated speed.
Taking the RERE’s Aero credentials to the next level, the KOKO now has Kamm-Tail profiles incorporated into the downtube, increasing the overall stiffness of the bottom bracket and headtube by 13.35% and 35.64% respectively. Married to our aerodynamically optimised and ergonomic MANA bar, the combination makes for a super sleek high-performance racing machine.

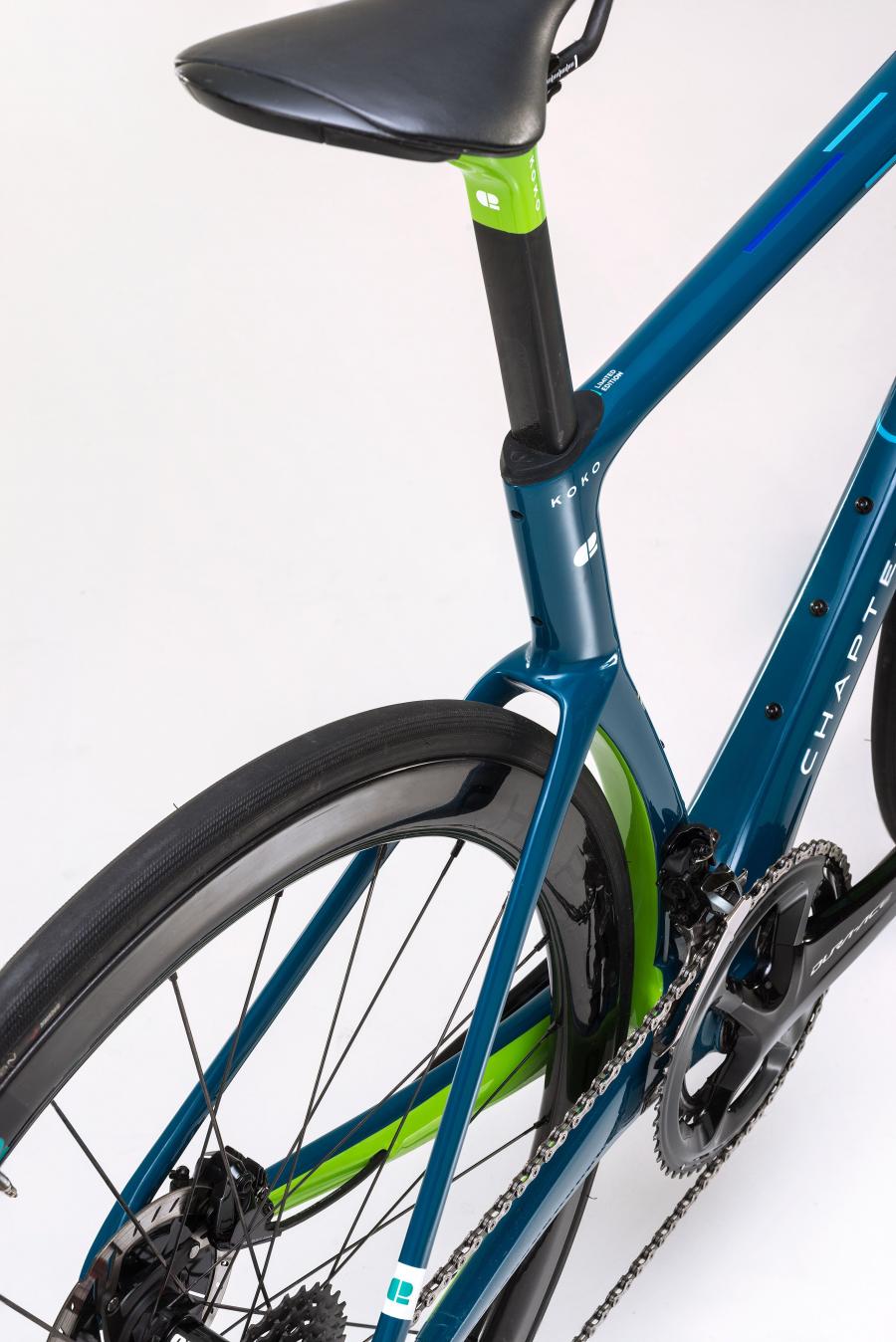

The KOKO also comes with adjustable compliance via a dual position seatclamp configuration that can be switched from stiff to buttery smooth depending on the rider’s personal needs and/or road conditions.
Further engineering gains via the use of Latex Mandrels for the front triangle and T47 BB creates a super rigid platform for transferring every watt you produce into forward motion. Other small yet well-considered details such as the Quick-Fit headset spacers, up to 32mm of tire clearance, vibration dampening Seatstays and Seatpost makes for a package that ticks all the right boxes.
Model Benefits:
- Aero Racing Frame: Aerodynamic Performance
- Cable Integration: Improved Aerodynamics and Clean Aesthetic
- Adjustable Compliance: Tuneable Seatpost Flex for Added Compliance
- Rear Wheel Cut-out: Improved Aerodynamics
- Kamm-Tail: Aerodynamic and Stiffness where needed
- Up to 32mm Tire Clearance: Increased Tire Options
- T47 BB: Noise-free and Easy to Service
- Latex Mandrels: Improved Stiffness to Weight in Front Triangle
- Frameset Only: Bespoke & Personal
- Limited Edition: Exclusivity
Delivery Terms –
For framesets available in WOW stock, delivery will be within 3-5 days. For framesets available in Chapter2 warehouse in Hong Kong, delivery will take maximum of 3 weeks. Price for Chapter2 framesets listed on WOW are inclusive of all duties, GST and delivery charges. Drop your enquiry on [email protected] to order any frameset from Chapter2 warehouse.
Sizing Information
Note: All dimensions are in mm unless otherwise mentioned
| Ref | Size | XXS | XS | S | M | L | XL |
|---|---|---|---|---|---|---|---|
| A | Top Tube Length | 490 | 515 | 529 | 548 | 564 | 581 |
| B | Head Tube Length | 70 | 98 | 118 | 137 | 163 | 188 |
| C | Seat Tube Angle | 74 | 73 | 73 | 73 | 73 | 73 |
| D | Head Tube Angle | 70 | 70.5 | 72.2 | 73.1 | 73.5 | 73.5 |
| E | Seat Tube Length | 425 | 427 | 447 | 472 | 497 | 521 |
| F | BB Drop | 73 | 73 | 73 | 73 | 73 | 73 |
| G | Chainstay Length | 408 | 408 | 408 | 408 | 408 | 408 |
| H | Wheelbase | 957 | 970 | 971 | 973 | 984 | 1000 |
| I | Front Centre | 560 | 574 | 574 | 576 | 587 | 603 |
| J | Fork Offset | 53 | 53 | 53 | 43 | 43 | 43 |
| K | Seatpost Setback | 10 | 10 | 10 | 10 | 10 | 10 |
| Stack | 467 | 495 | 520 | 545 | 570 | 595 | |
| Reach | 356 | 365 | 374 | 382 | 392 | 401 | |
| Stem | N/A | N/A | N/A | N/A | N/A | N/A | |
| Standover Height | 707 | 708 | 730 | 755 | 780 | 805 | |
| Rider Height (cm) | <165 | 160-170 | 165-175 | 170-180 | 175-185 | >180 | |
| Max. Tyre Size | 32 | 32 | 32 | 32 | 32 | 32 |
