Chapter2 RERE Aero Road Disc Brake Frameset-Navy Blue (Moana)

₹177,900.00

Categories: , ,

Description

RERE – Meaning “Flow” in Maori – Pure aerofoil form | design for performance | kinked compliant seatstays

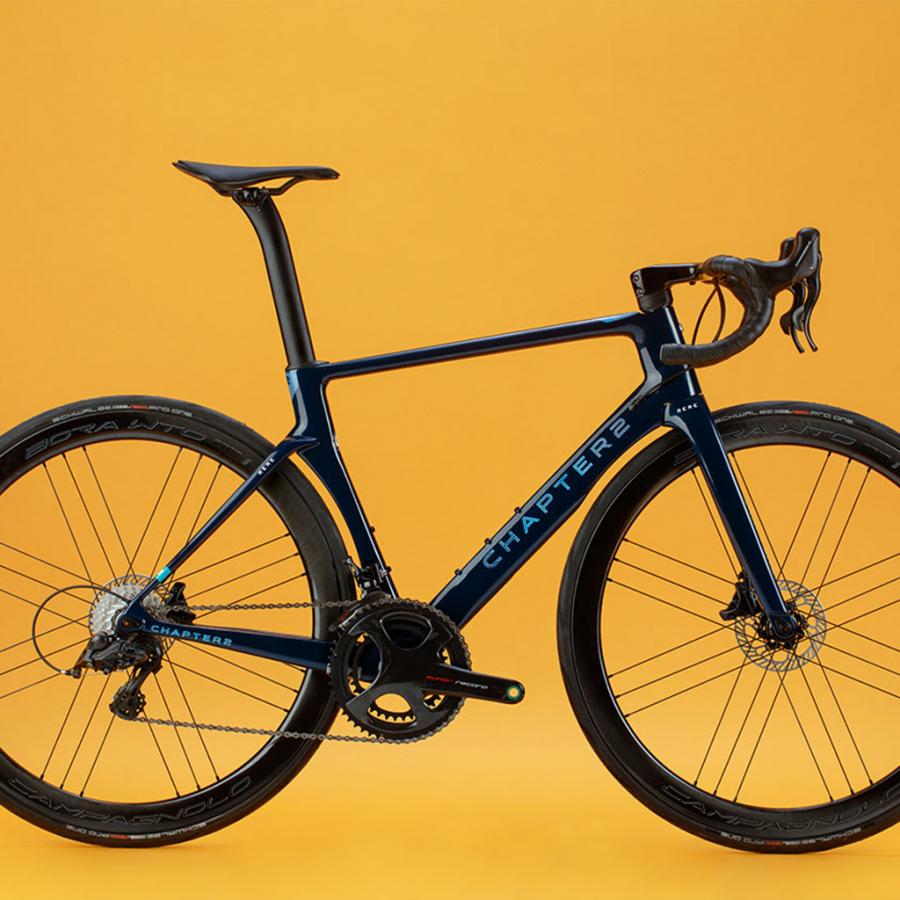

About the Frame:If raw speed is what you’re all about, the RERE has been designed with you in mind. RERE means “Flow” in Maori which perfectly defines its aerodynamic credentials. The RERE has been the weapon of choice for anybody looking for a performance edge.The RERE is positioned in our Aero Road category of frame platforms. Whilst most manufacturers have been extolling the virtues of Kamm-Tail aero frames, we went against the grain and developed a pure Aerofoil frame that slices through the air, yet still delivers that silky smooth ride quality.

Developed in the Auckland University Wind Tunnel, the RERE is the perfect combination of aerodynamic sculpting to deliver pure speed yet has compliance features seamlessly fused into its tube profiles, such as the narrow and slightly kinked Seatstays that dampens any rough road conditions.

The RERE is available in both Rim (Direct Mount) and Disc versions to provide stopping power and tire clearance expected of a frame platform design for those long breakaway moments. Both the Headtube and Bottom Bracket areas have been carefully reinforced with high-tensile directional carbon fibre to ensure the RERE tracks like it’s on rails and to converts every Watt you produce into forward motion.

Model Benefits:

  • Pure Aero (Not Kamm-Tail): Developed at Auckland University’s Wind Tunnel
  • Rear Wheel Cut-Out: Improved Aerodynamics
  • Kinked Seatstays: Improved Compliance
  • High Modulas Carbon (Headtube): Increased Cornering Performance
  • High Modulas Carbon (BB): Increased Power Transfer
  • Reversible Seatpost: Saddle Forward by 34mm for TT/Tri
  • Rim & Disc Options: Both Options are Available
  • Sloping Toptube: Stiffer Front Triangle & Increased Standover Height
  • Frameset Only: Bespoke & Personal
  • Limited Edition: Exclusivity









What you Get:

  • Frame
  • Fork
  • C2 fork expansion bolt
  • Headset
  • Headset spacer kit
  • Seatpost
  • Thru Axles



Delivery Terms – For framesets available in WOW stock, delivery will be within 3-5 days. For framesets available in Chapter2 warehouse in Hong Kong, delivery will take maximum of 3 weeks. Price for Chapter2 framesets listed on WOW are inclusive of all duties, GST and delivery charges. Drop your enquiry on [email protected] to order any frameset from Chapter2 warehouse.

Sizing Information

Note: All dimensions are in mm unless otherwise mentioned

Ref Size XS S M L XL
A Top Tube Length 516 530 548 564 582
B Head Tube Length 98 118 138 163 189
C Seat Tube Angle 73 73 73 73 73
D Head Tube Angle 70 72 73 73 73
E Seat Tube Length 427 447 472 497 521
F BB Drop 68 68 68 68 68
G Rear Centre 408 408 408 408 408
H Wheelbase 970 970 970 982 999
J Fork Offset (2 Forks) 53 53 43 43 43
K Seatpost Setback 15 15 15 15 15
Stack 490 514 541 566 591
Reach 365 372 382 391 400
Stem 80 90 100 110 120
Standover Height 725 751 773 798 820
Rider Height (cm) <170 165-175 170-180 175-185 >180
Max Tyre Size 28 28 28 28 28
Rear Caliper Mount 25 25 25 25 25

Frame Specs:

  • Carbon: Toray® T700, T800 & 3K Directional Carbon
  • Frame 5 Sizes: XS, S, M, L & XL
  • Fork 2 Sizes: XS, S (53mm offset) and M, L, XL (43mm offset)
  • Frame Weight: 998g (Rim) Size M & 1050g (Disc) Size M +/- 3%
  • Fork: 390g (Rim) & 425g (Disc) Uncut +/- 3%
  • Seatpost: Reversible Seatpost 198g +/- 3%
  • Stem: 80mm, 90mm, 100mm, 110mm and 120mm (+/-7°)
  • Headset: CHAPTER2 Tapered 1-1/8” – 1.5”
  • BB: Press Fit BB86.5
  • Electronic Shifting: SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
  • Battery Type: Di2 SM-BTR-2 and EPS V3 Battery compatible
  • Tire Clearance: 28mm
  • Saddle Rail: 7mm Round & 7x9mm Oval
  • Disc Thru-Axle Spec: Flat Mount, FR 12x100mm, RR 12x142mm,E-Thru M12x1.5mm
  • Safety Standard: EN ISO 4210:2014
  • UCI Accreditation: UCI Approved



Torque Specs:

  • Saddle Rail: 12Nm
  • Integrated Seatclamp: 7-9Nm
  • Stem (Steerer): 6Nm
  • Stem (Handlebar): 6Nm
  • Front Derailleur Hanger: 3Nm
  • Rear Derailleur Hanger: 2Nm
  • BB Cable Guide Cover: 1Nm
  • Water Bottle Cage Bolts: 3Nm



Chapter2 Lifetime Warranty Policy:

All CHAPTER2 framesets (frame, forks, seatpost, and other parts provided with frame at time of purchase) and MANA Bar and associated parts are covered under our global lifetime warranty program. Your warranty period begins from the time of purchase.

CHAPTER2 warrants that your frame, fork, and/or seatpost and other parts supplied with the frame are free of any manufacturer’s defects and are only applicable to the original purchaser and may not be assigned.

This warranty only applies to CHAPTER2 products purchased from our website or from an authorised dealer or online store. This warranty commences from the date of purchase, is offered only to the original retail purchaser, and is not transferable.

Exceptions:

Consumable parts/accessories such as hangers, cable stops, seatclamps, saddle clamps, etc. are not covered under this warranty.

The paint and decals on your CHAPTER2 frame, fork, and/or seatpost and other CHAPTER2 branded parts/accessories are only covered for a period of 2 years from the time of purchase.

The warranty excludes damage whilst the frame, fork, and/or seatpost are being used on a stationary trainer.

Damage caused by abuse, misuse, improper assembly, rental, improper or insufficient maintenance, accident, impact, corrosion, use of aggressive cleaners, use with non-compatible components, improper repairs, and wear and tear is not covered under this warranty.

For complete details of Chapter2 Lifetime Warranty Policy, Click Here

Additional information

size

M, S, XL, XS
