Description

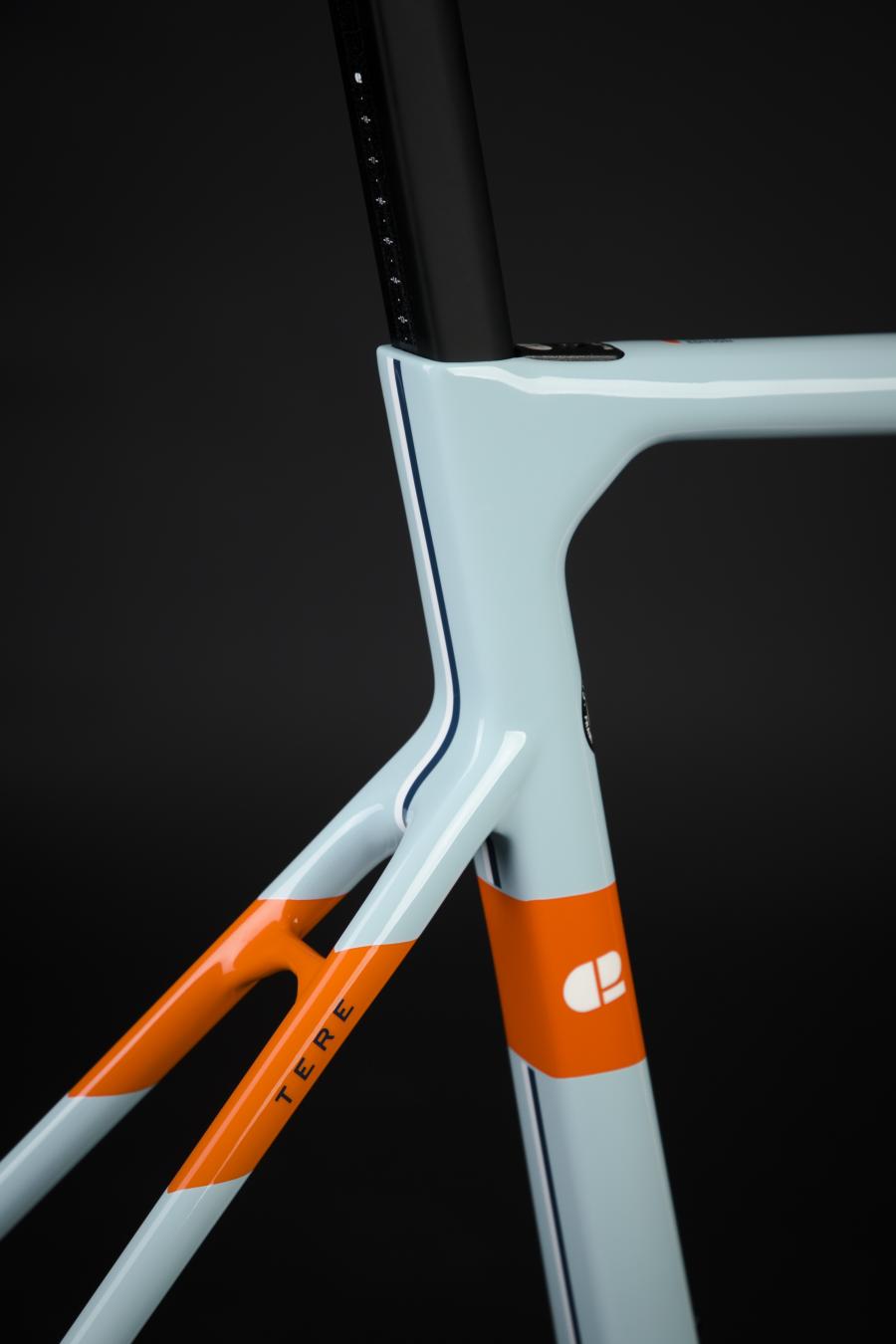

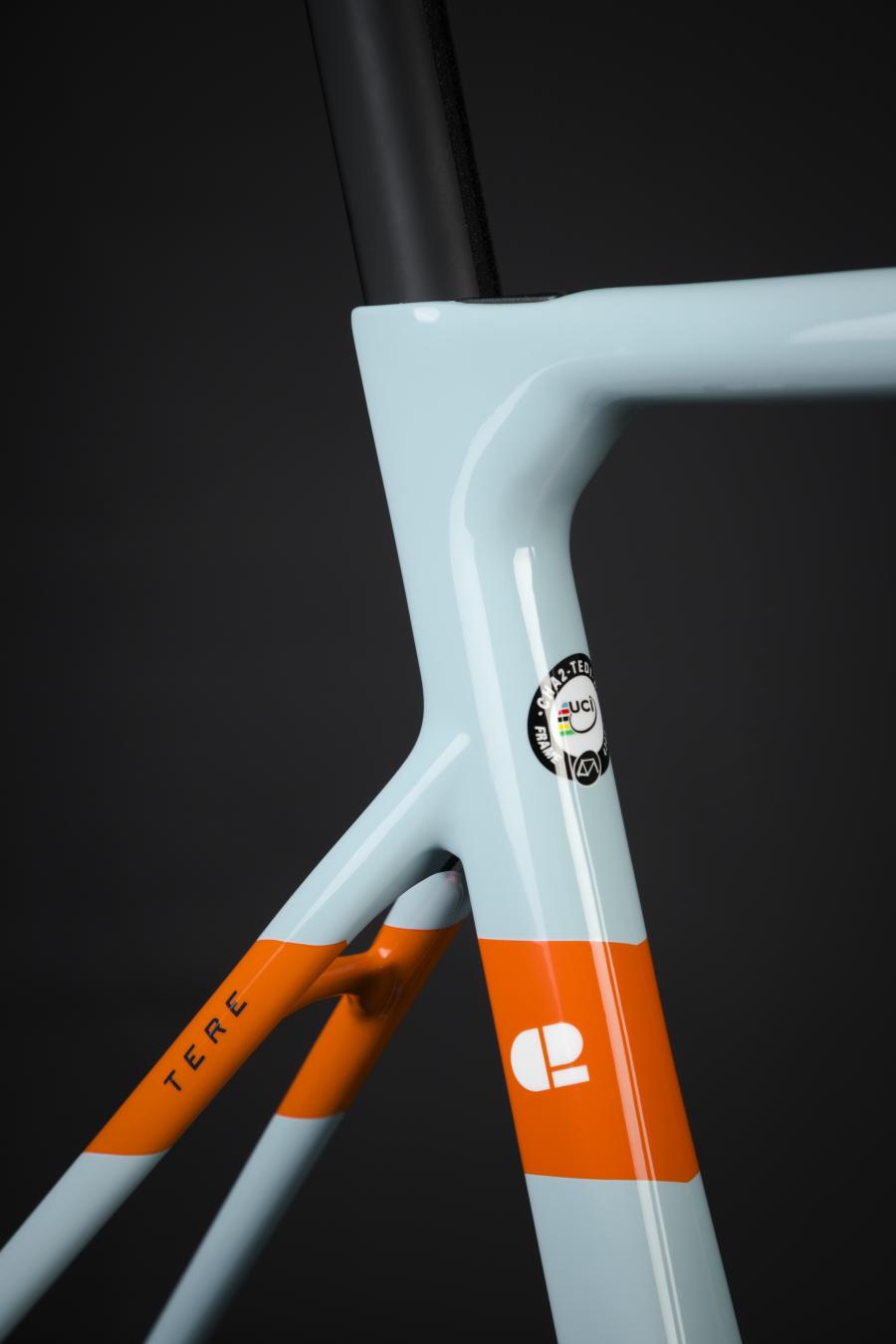

With sunrise to sunset riding in variable conditions in mind, the TERE’s vibration dampening Seatstays and Seatpost combined with its more upright stance will mean that you’ll be able to give it everything, all-day long.

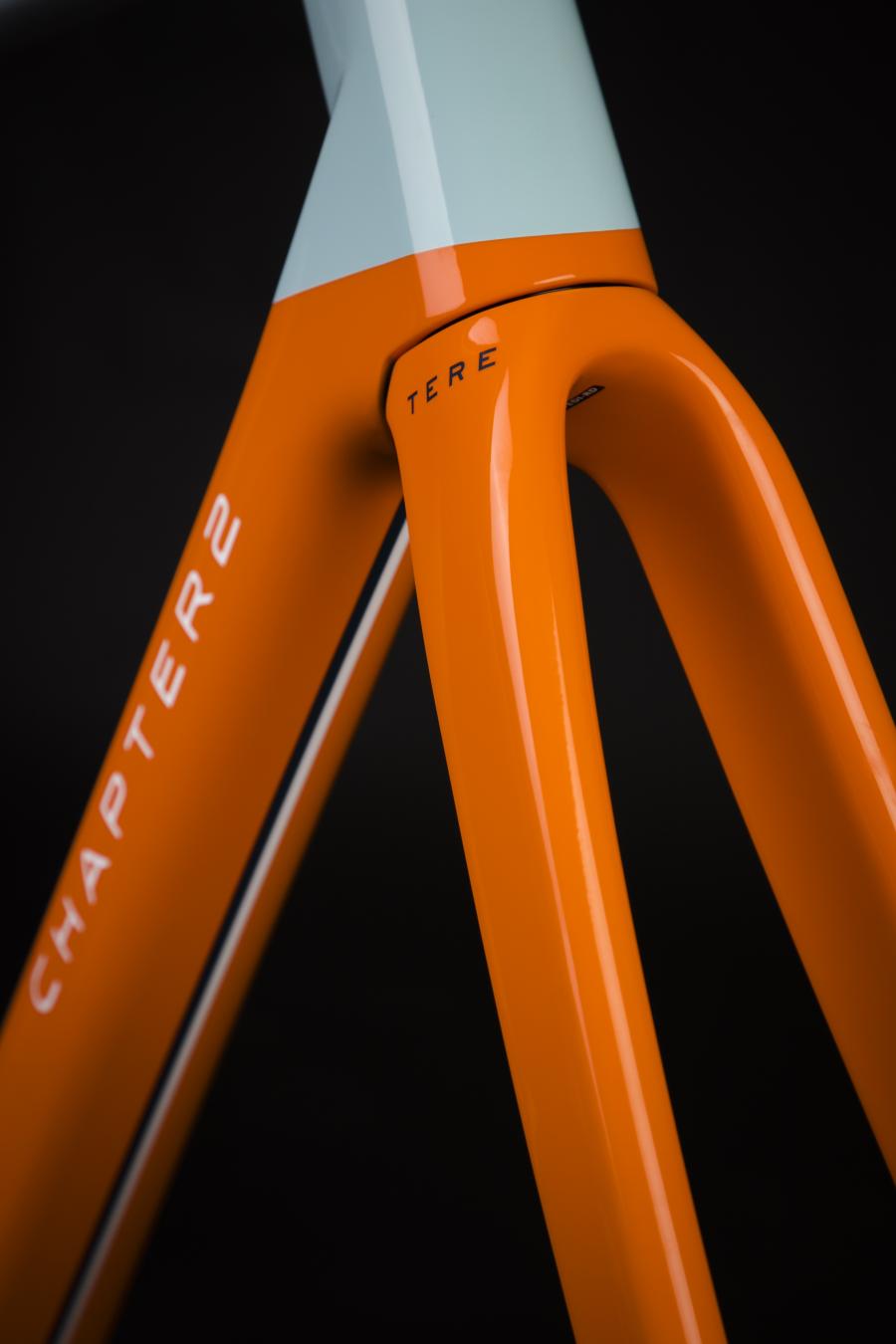

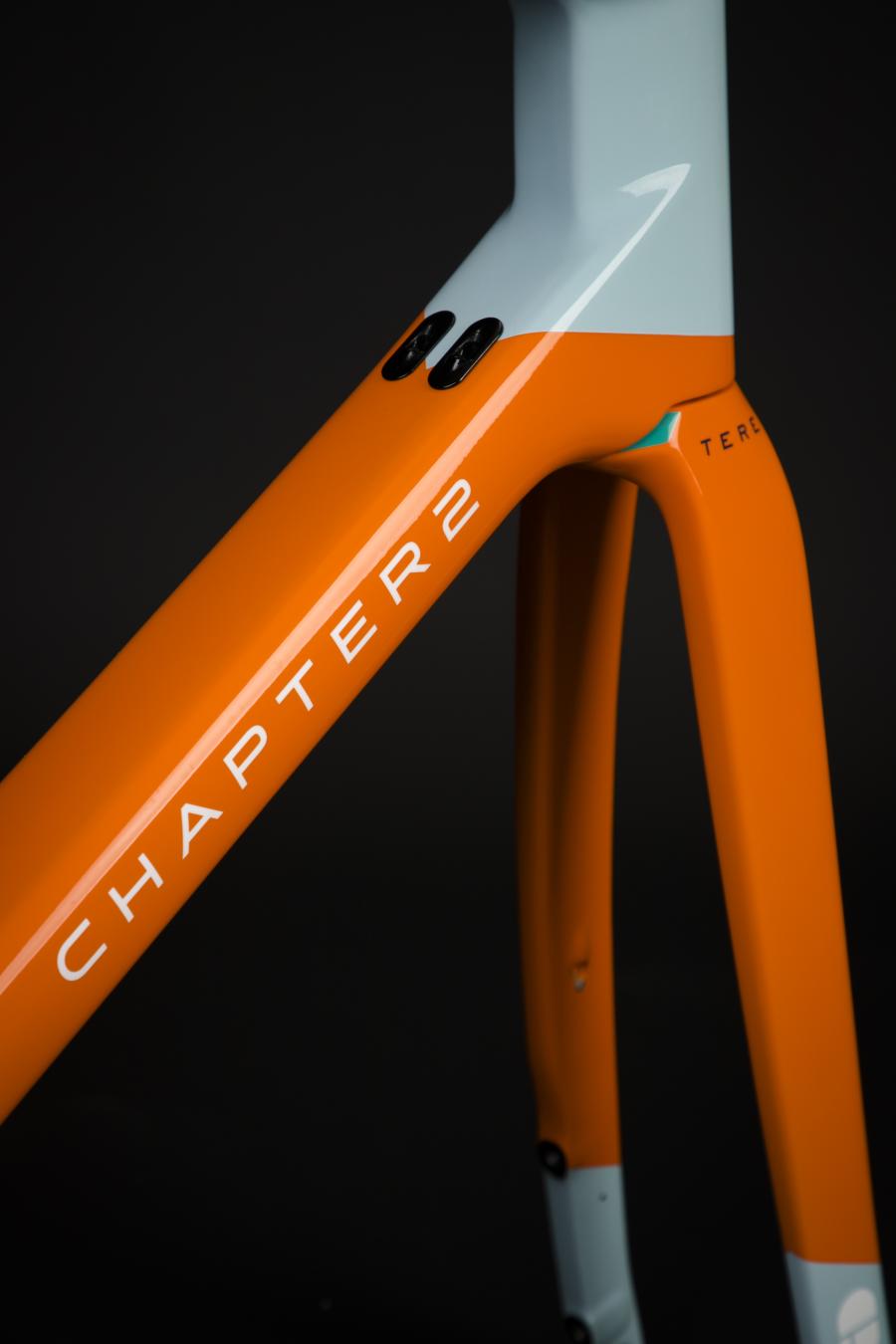

Available in both Rim and Disc versions with subtle yet effective Kamm-Tail profiles tested at Auckland University’s Wind Tunnel, the use of high tensile directional carbon fibre in the Headtube will mean that you can throw the TERE into any tight corner knowing it will track true and confidently every time.
Model Benefits:
- Stiff Racing Frame: Improved Power Transfer & Precise Steering
- Compact Kamm-Tail: Aerodynamic & Stiffness where Needed
- High Modulas Carbon (Headtube): Increased Cornering Performance
- High Modulas Carbon (BB): Increased Power Transfer
- Dropped Stays: Improved Compliance for Endurance Rides
- Rim & Disc Options: Only Disc Brake Option available in this colour
- Frameset Only: Bespoke & Personal
- Limited Edition: Exclusivity
What you Get:
- Frame
- Fork
- C2 fork expansion bolt
- Headset
- Headset spacer kit
- Seatpost
- Thru Axles
Delivery Terms – For framesets available in WOW stock, delivery will be within 3-5 days. For framesets available in Chapter2 warehouse in Hong Kong, delivery will take maximum of 3 weeks. Price for Chapter2 framesets listed on WOW are inclusive of all duties, GST and delivery charges. Drop your enquiry on [email protected] to order any frameset from Chapter2 warehouse.
Sizing Information
Note: All dimensions are in mm unless otherwise mentioned
Ref | Size | XS | S | M | L | XL |
---|---|---|---|---|---|---|
A | Top Tube Length | 514 | 531 | 548 | 564 | 581 |
B | Head Tube Length | 113 | 133 | 153 | 178 | 204 |
C | Seat Tube Angle | 73 | 73 | 73 | 73 | 73 |
D | Head Tube Angle | 70 | 72 | 73 | 73 | 73 |
E | Seat Tube Length | 495 | 515 | 535 | 555 | 575 |
F | BB Drop | 68 | 68 | 68 | 68 | 68 |
G | Chainstay Length | 405 | 405 | 405 | 405 | 405 |
H | Wheelbase | 970 | 972 | 970 | 982 | 999 |
I | Front Centre | 575 | 577 | 575 | 587 | 604 |
J | Fork Offset (2 Forks) | 53 | 53 | 43 | 43 | 43 |
K | Seatpost Setback | 20 | 20 | 20 | 20 | 20 |
Stack | 505 | 530 | 555 | 580 | 605 | |
Reach | 360 | 368 | 378 | 387 | 396 | |
Standover Height | 756 | 778 | 800 | 823 | 846 | |
Rider Height (cm) | <170 | 165-175 | 170-180 | 175-185 | >180 |
